Lmic

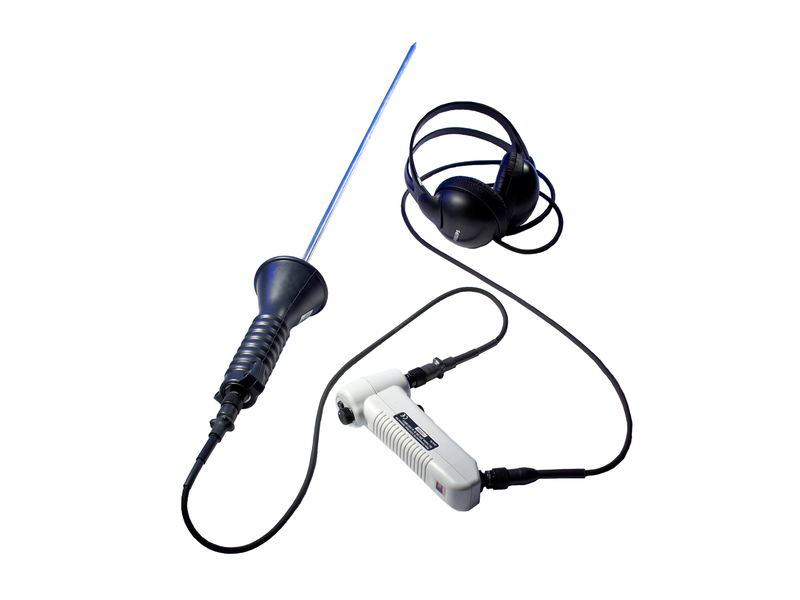

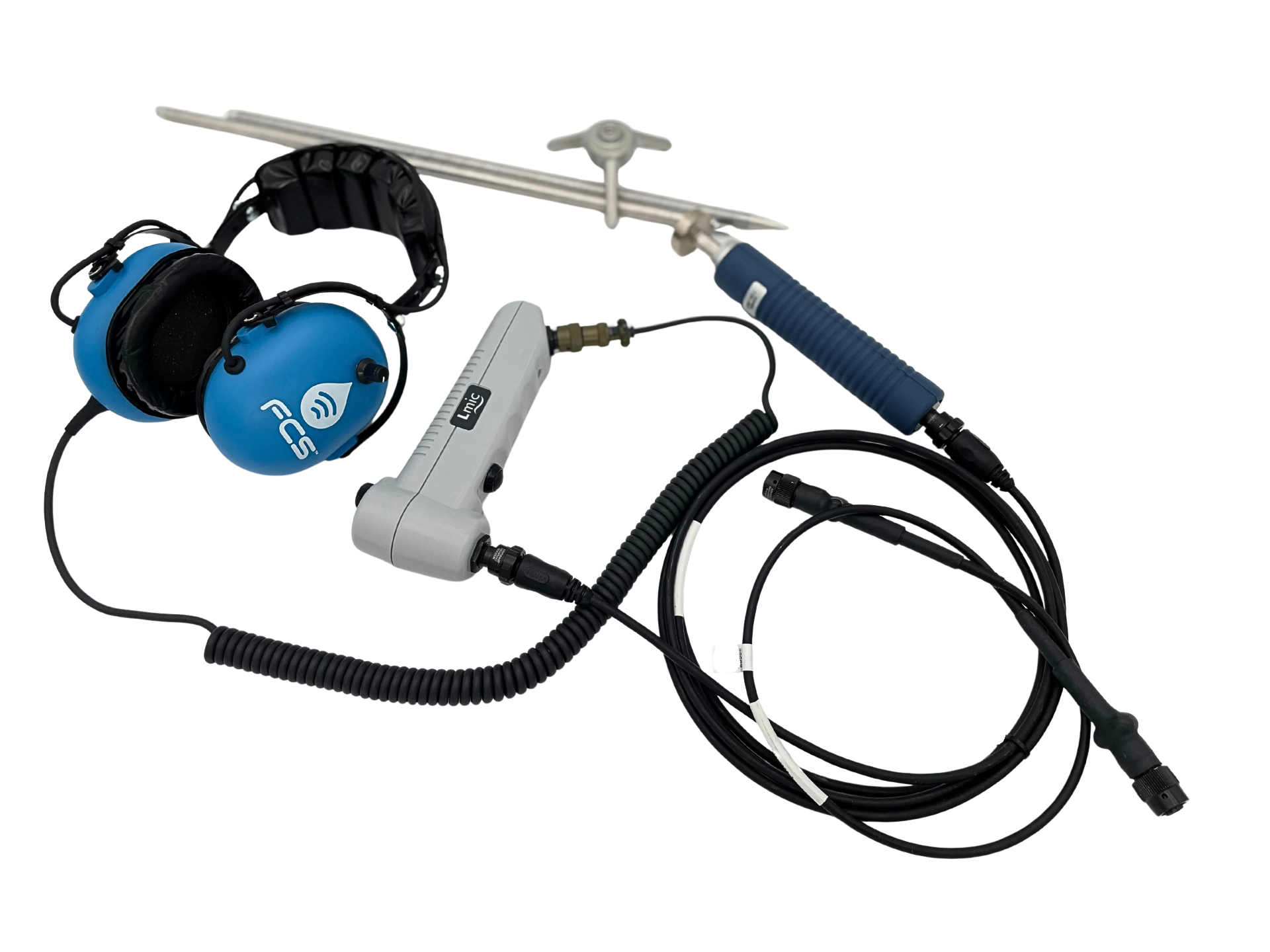

The Lmic is an easy-to-use, low-cost electronic listening stick combined with a ground microphone. It is ideal for general leak-sounding operations and can be fitted with either a tripod foot (for use as a ground microphone) or probe rods (for sounding at fittings or in the soft ground).

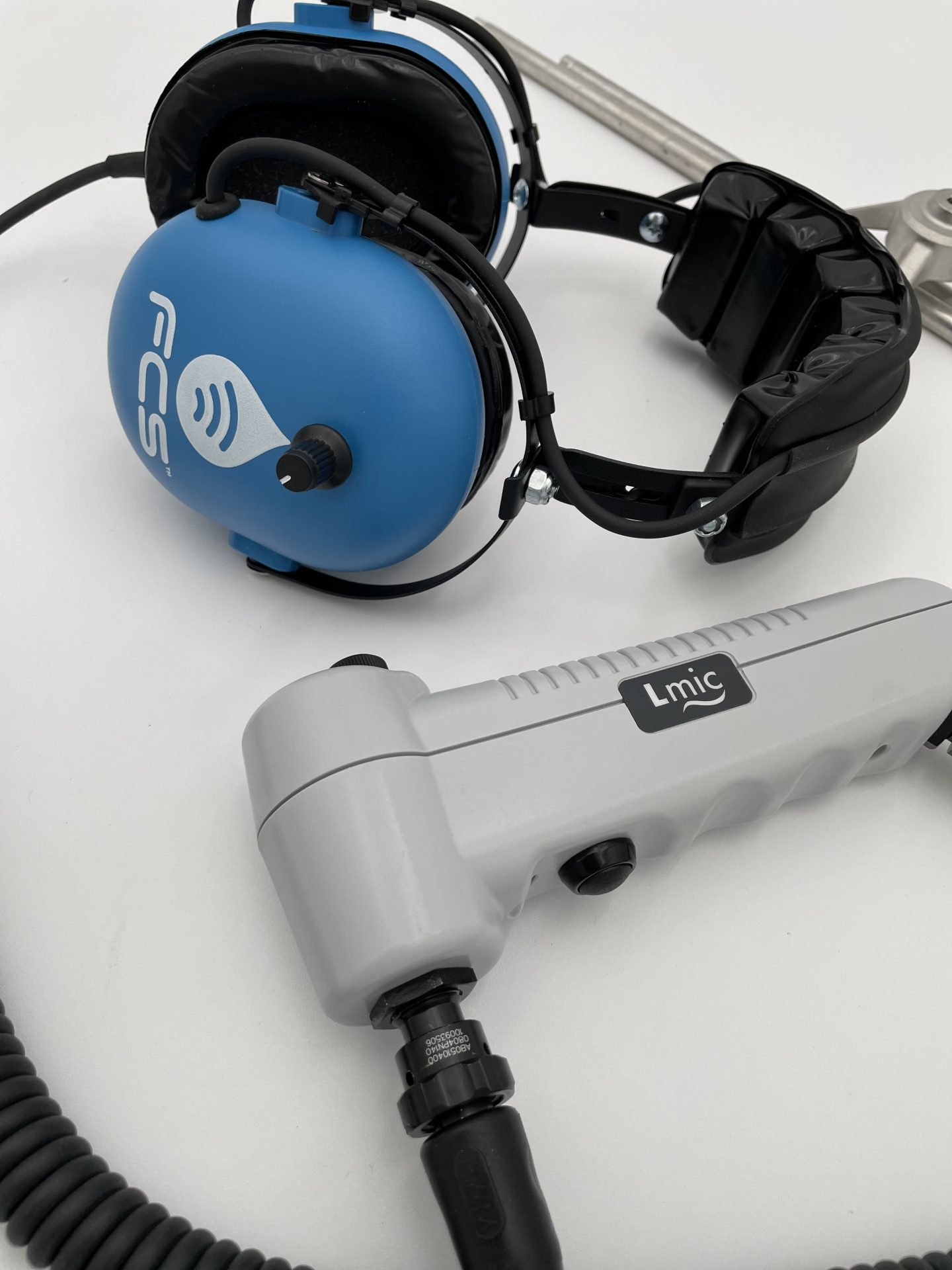

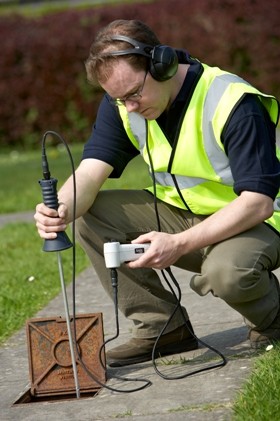

The control unit is hand-held and has a ‘trigger’ operation and a volume/sensitivity rotary control. An LED indicates operation and battery status. This lightweight unit can be used to confirm the position of underground leaks audibly from ground level. Sound pipe fittings penetrate soft ground to listen for leaks and carry out traditional acoustic surveys.

The Lmic “i” gives additional electrical insulation by inserting an acetol disc between the shaft and the handpiece and adding insulation to the shaft for extra protection.

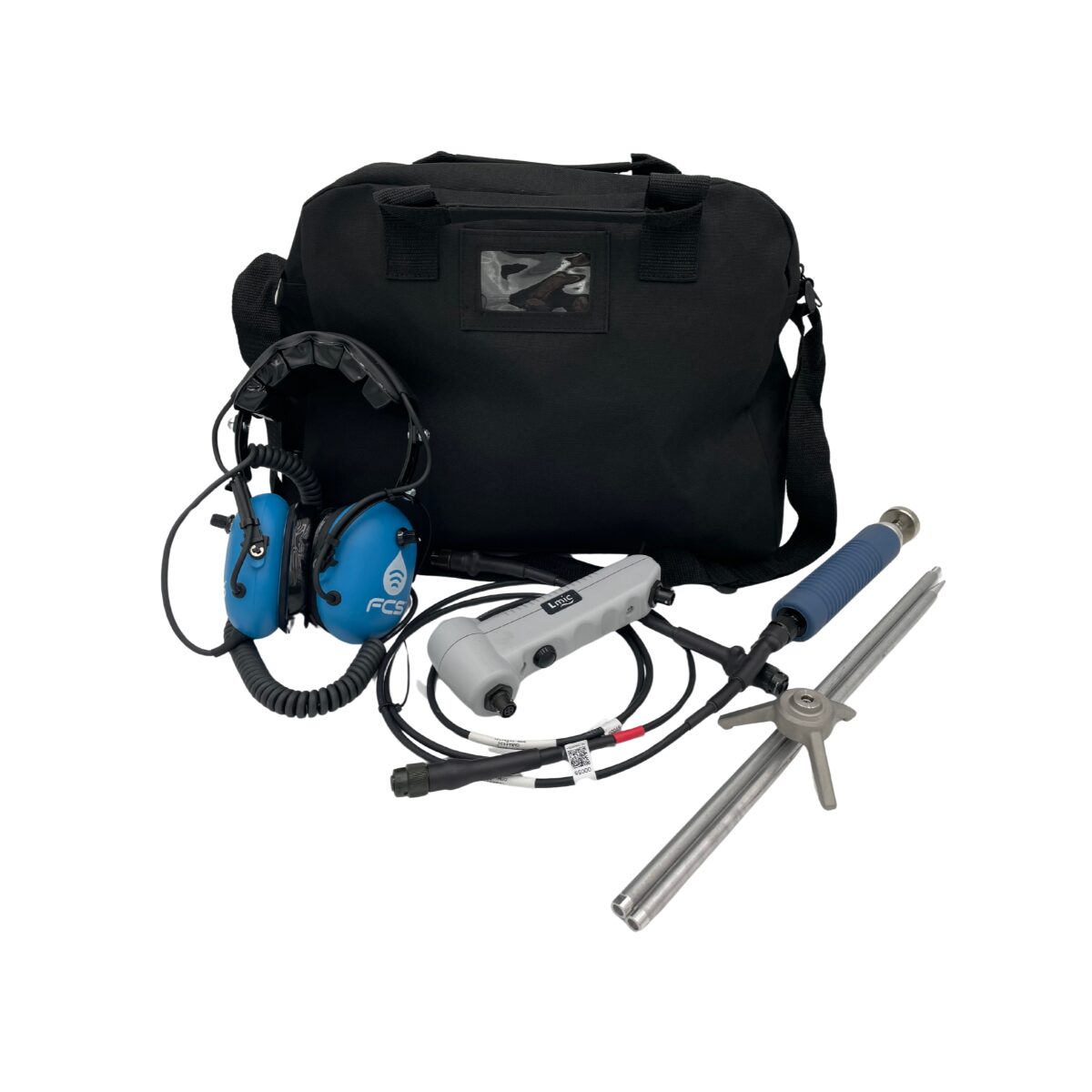

The Lmic is supplied with a handheld control unit, microphone unit with cable, tripod unit, two probe rods, AC adapter, headphones, carry bag, and instruction manual. The Lmic “i” is supplied with all of the above, plus an acetol isolation block and insulation for the two probe rods.

Key Benefits

  •  Lightweight hand-held unit for long-term ease of use
  • Low cost
  • Excellent acoustic performance
  • Simple “trigger” operation
  • Versatile – ground microphone and hand probe configurations
  • Military specification connectors
  • Rechargeable battery pack with long operation between charges
  • Additional protection from electric shock (Lmic “i” only)

Request Quote

Charging Universal 110-240V AC charger with 12V DC output. Charge time: overnight
Connectors Amphenol military specification connectors for microphone and headphone/charger connections
Foot Attachment Cast metal tripod for ground contact
Hand Probe Attachment Two aluminum extension rods (each 400mm long)
LED Green = normal operation. Red = low battery power
