The Tri-Corr Touch Pro represents a breakthrough in leak detection technology. It features improvements throughout the leak noise processing path to improve performance, especially in the most challenging leak detection situations.

This enables it to perform best in traditionally difficult conditions, such as on plastic and large-diameter pipes.

Request Quote

Easy To Use

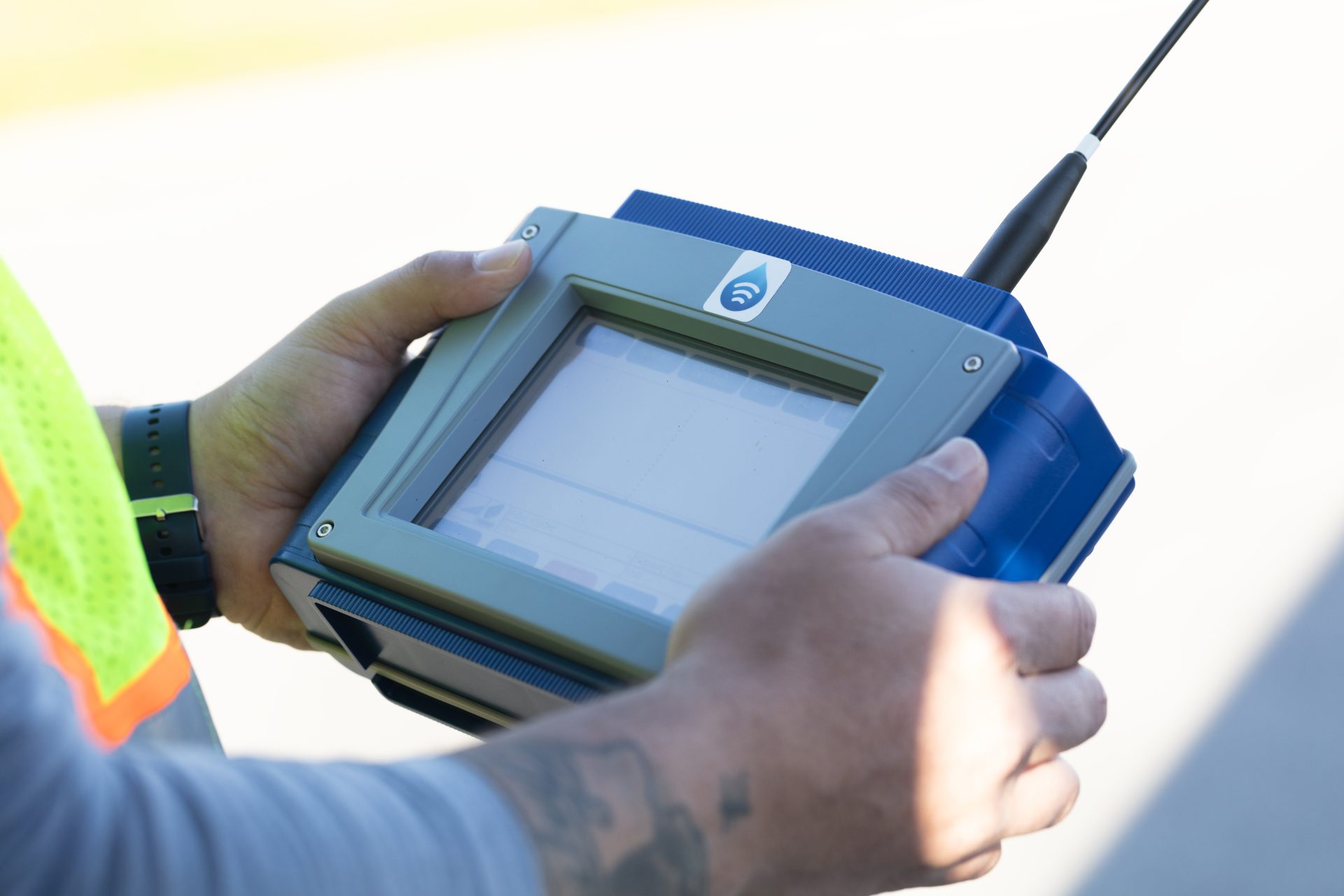

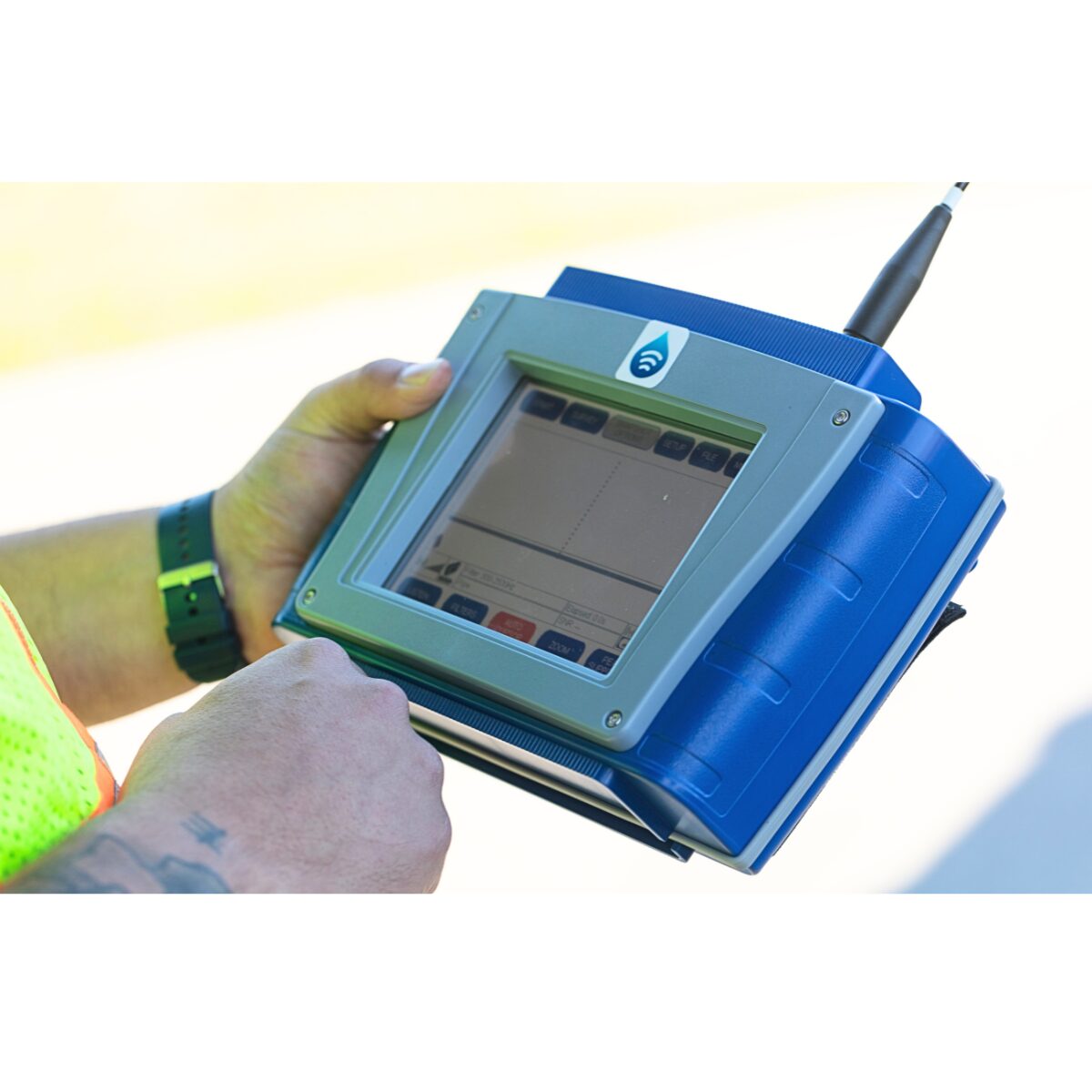

Touch Pro features a high-visibility, full-color VGA touch screen to greatly improve data entry and the quality of graphical presentation. The intuitive user interface enables the unit to be operated with minimal key presses, and the helpful step-by-step menu system easily guides the user through the correlation process.

High-Quality Performance

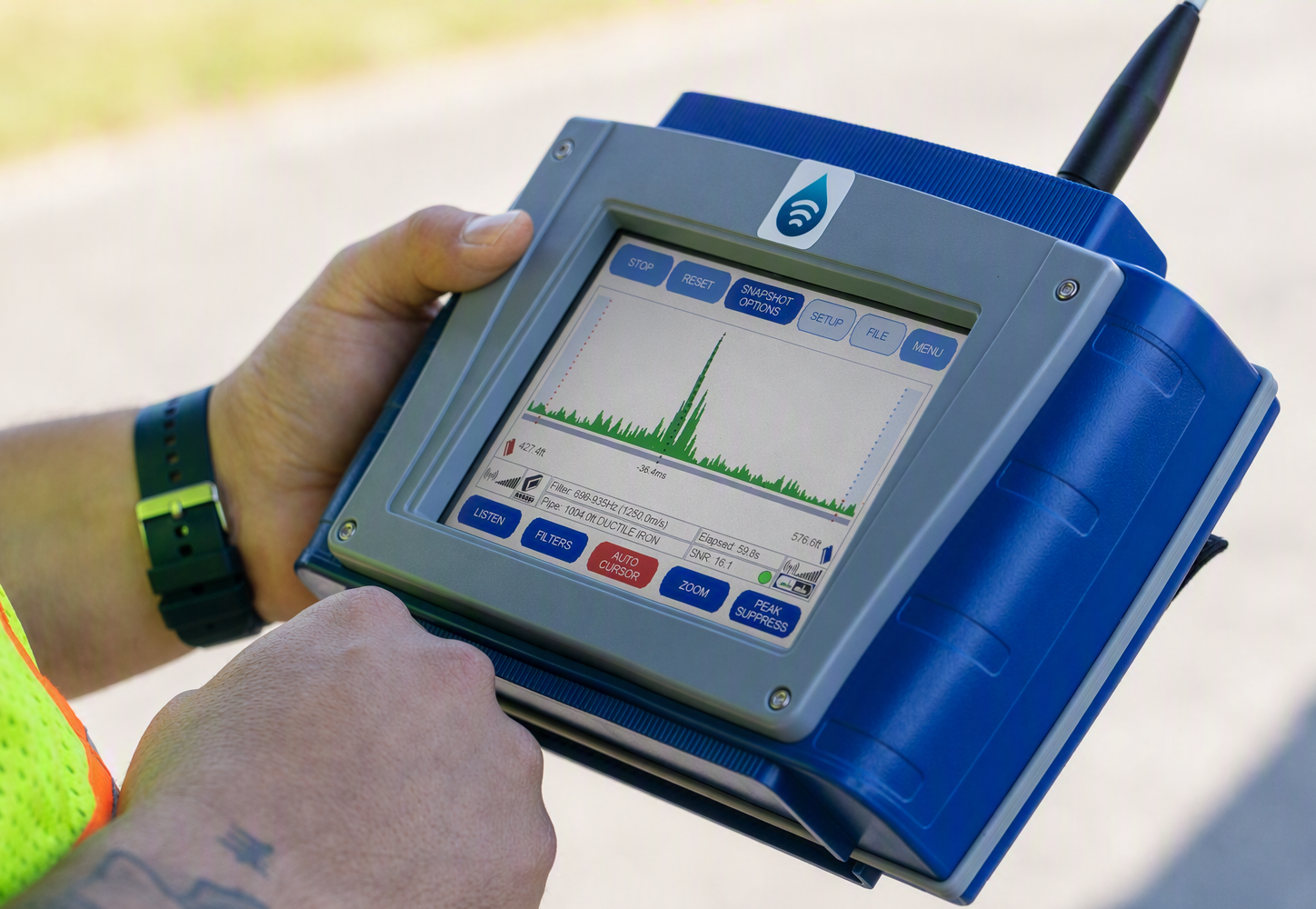

The large screen clearly displays correlation results and supportive information, and the innovative high-contrast mode enables good visibility even in bright sunshine.

The unique Automated Filtering Intelligence System (AFIS) automatically runs up to 55 different filter combinations on each correlation, checking the quality of the result and optimizing the filters until the best result is obtained. AFIS works with both live and pre-recorded correlation data and makes manual filter setting a thing of the past by effectively building an “expert user” into the unit.

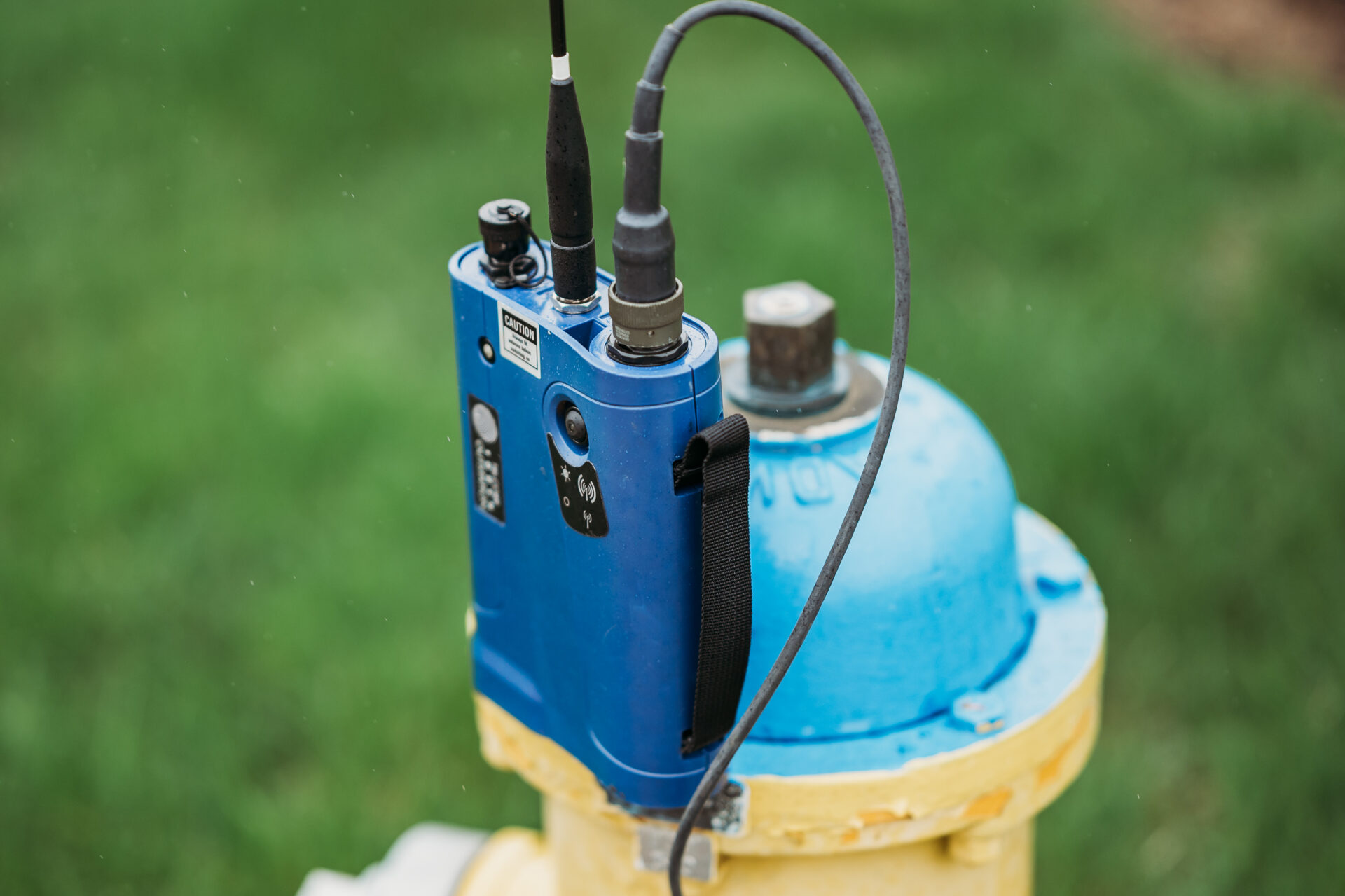

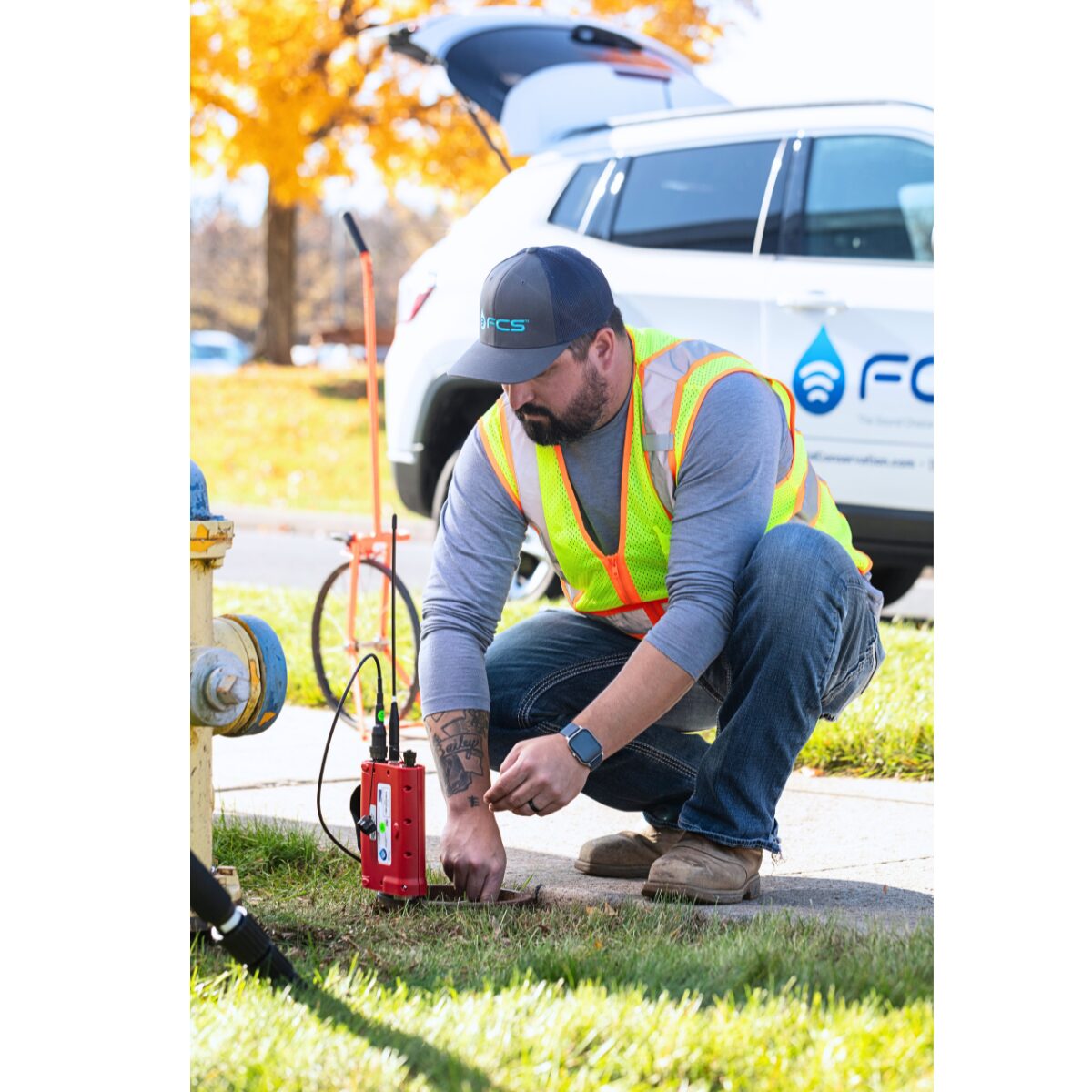

The outstation is compact and has an upgraded, high-quality, long-range radio transmission. It also features a magnet to secure it to metallic surfaces.

Robust For Long-term Use

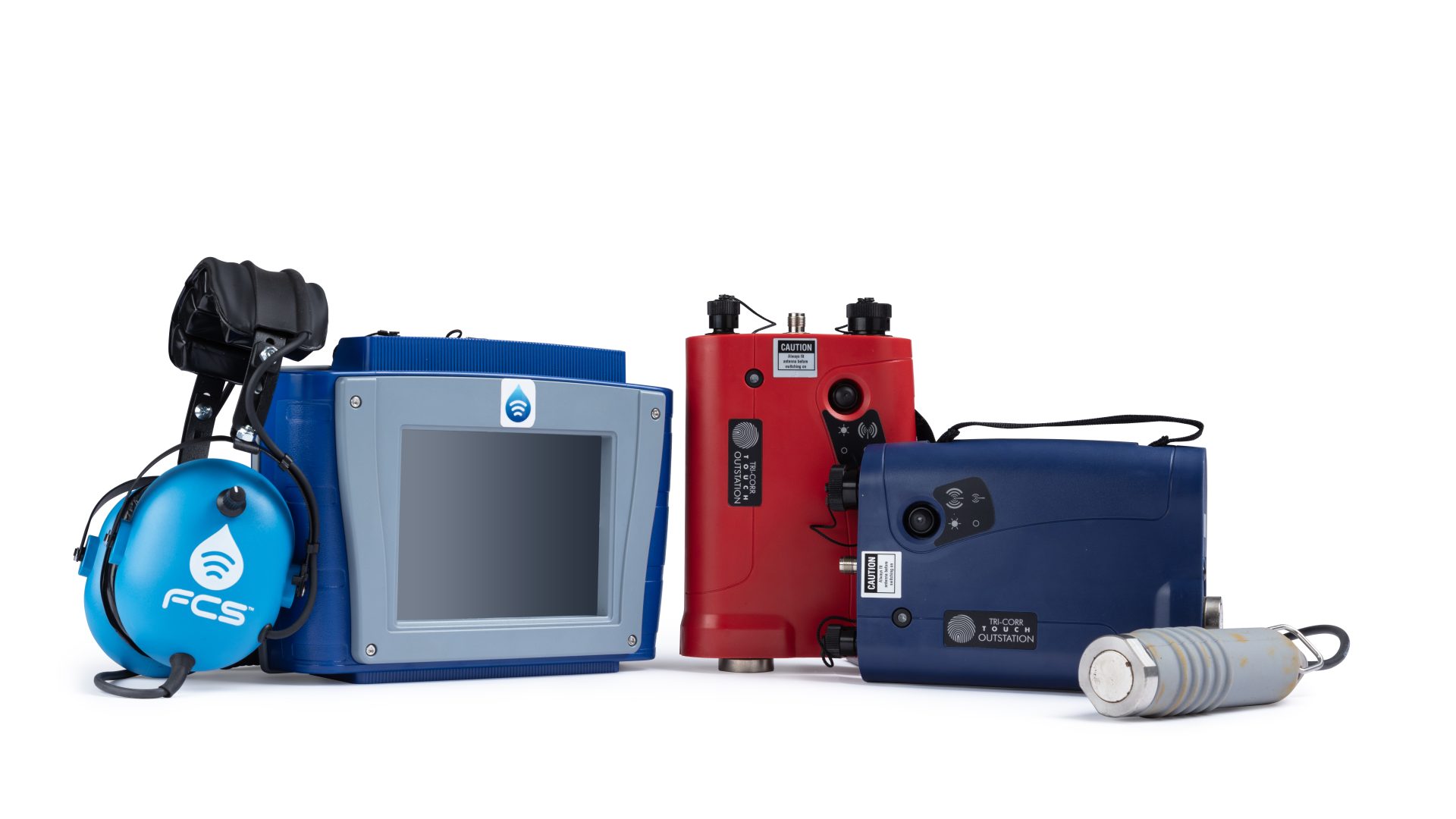

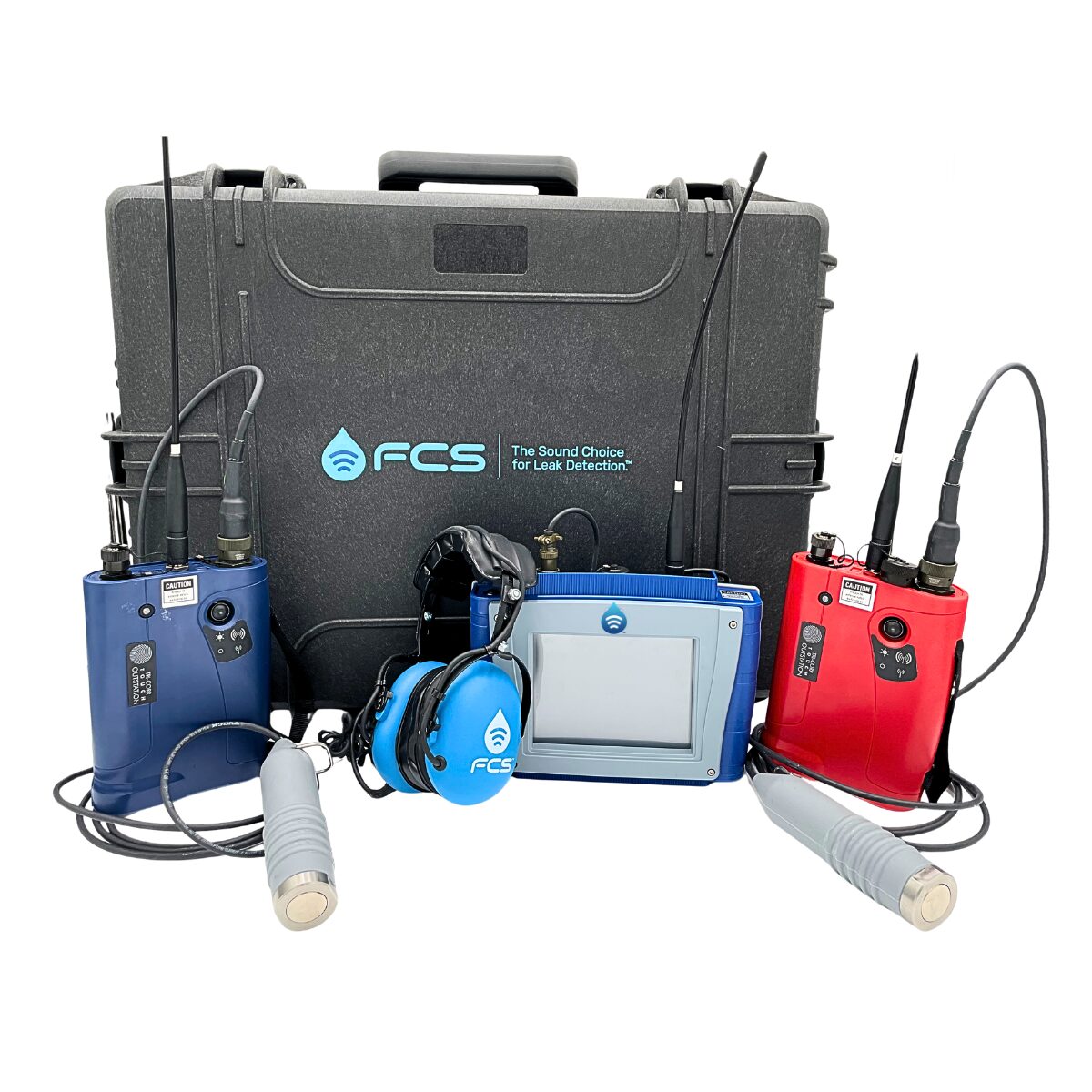

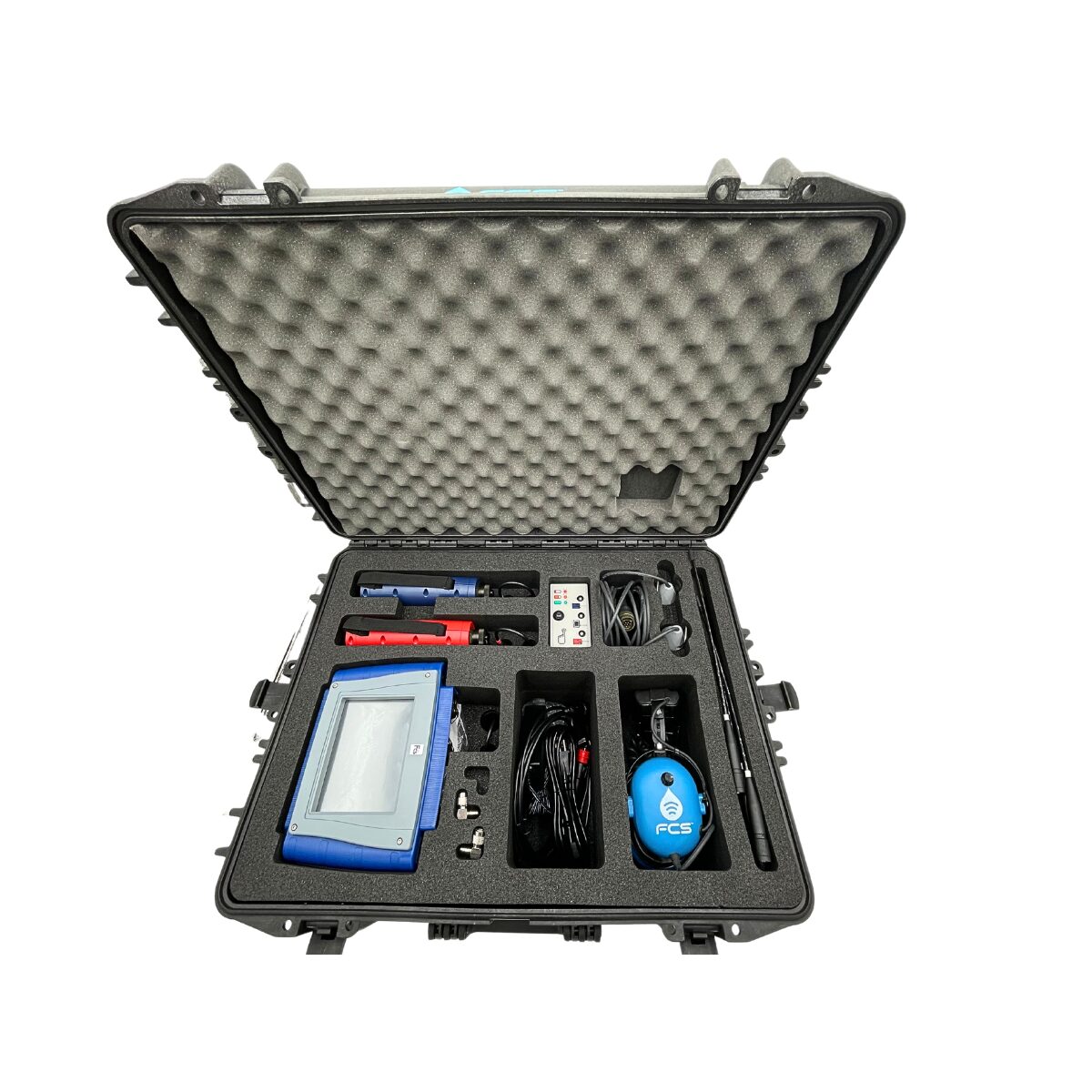

The specially designed robust case not only carries and protects all components but also allows the base station and outstations to be charged from a single power lead and displays charging status. Units can be stowed with sensors that are still connected for faster deployment in the field.

Using our extensive experience in correlator design and manufacture, we have created an easy-to-use system that delivers the best overall performance at a highly competitive price.

Key Features

  • Upgraded processing electronics
  • Upgraded high-quality, long-range telemetry
  • AFIS – Automatic Filtering intelligence system
  • High visibility color VGA Touch screen
  • Easy to use
  • Compact, portable design
  • Unique, robust construction
  • In case charging
  • High Impact PC/ABS Casework
  • Faster and cleaner correlation results
  • Option available for Trunk Main Monitoring

Request Quote

CONTROL UNIT

Display High Visibility Full-Color VGA
Dimensions Height to Top: 90mm Width: 250mm Depth: 180mm
Weight 1.9kg
Operating Temperature -15°C to +50°C
Environmental IP65
Enclosure High Impact PC/ABS plastic
PC Download Via PC software, Windows-compatible software
Battery Rechargeable Lithium-ion batteries, field replaceable. 7 hours battery life. Rechargeable in case
Antennae External antenna/magmount



OUTSTATION

Connection

Headphones, External antenna, Charging

Battery

Rechargeable Lithium-ion batteries, field replaceable. 7 hours battery life. Rechargeable in case

Antennae

External antenna

Dimensions

L 200mm W 135mm D 50mm

Weight 0.87kg
Environment IP65
Housing High-impact PC/ABS plastic
Connectors Military specification Amphenol



SENSOR

Environment IP68
Connection Military spec connector
Hydrophones Available as an option with a tuned auto-gain interface
